Place of Origin:
china
Brand Name:
aiifar
Certification:
CE
Model Number:
WP-30-01
Contact Us

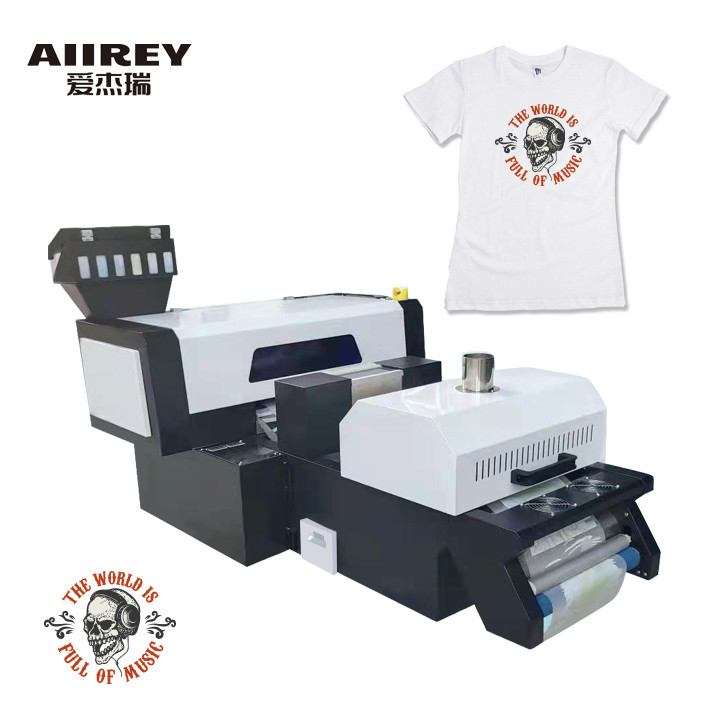

Double Heads 300mm DTF Desktop Printer A3 Transfer PET Film
Dual XP600 Print Heads A3 Transfer Pet Film Desktop Dtf Printer 300mm
|
Printer with Duster |
|
|
Type |
WP-30-01 |
|
Nozzle model |
2 original Epson XP600 |
|
Printing Speed |
High-speed mode 4.5m²/hour |
|
Color Mode |
CMYK, LC, LM+W |
|
Printing Format |
300mm |
|
Media Transfer |
Paper tension |
|
Heating Device |
Front, middle and back three-stage heating |
|
Ink Road System |
Automatic ink supply, |
|
Power Supply |
110V/220V 50-60Hz |
|
Power |
≈2kw |
|
Weight |
130KG machine + box 50KG |
|
Packaging |
170*120*85cm |
|
Working Environment |
Temperature 20-28℃ Humidity 50-70ph |
|
Cover Area |
160*110*70cm |
1. Constant tension paper feeding: to ensure that the white color is in place and accurate, and the paper does not run off the track.
2. One-piece lifting maintenance station, with timing flashing function, better maintenance of nozzles.
3. Industrial-grade processing long beam, Japanese THK guide rail, integrated heavy-duty tripod.
4. Quantitative powder spreading (the amount of powder controlled by the weight sensor, with powder blocking devices on both sides, reducing manual powder return, flapping powder removal, adjustable speed)
5. Double-layer fan cooling device, automatic paper delivery device, can choose to punch while cutting or automatic paper delivery.
6. Mesh belt conveying, adjustable speed, front and rear suction, simple and quick operation, up and down intelligent baking, PDI control, constant temperature, to ensure that the printing film does not change shape.
7. Intelligent PLC touch screen control system, easy to operate, with alarm monitoring, extremely simplified operation.
What are DTF and DTG?
DTF stands for Direct-to-film, the same as DTG stands for Direct-to-garment. Fundamentally, DTF is an inkjet transfer process: inkjet printing + hot melt "glue" + transfer film. Think of this process as doing a white toner printer transfer.
Can it be sublimated with vinyl?
The design can be sublimated directly onto the vinyl before being pressed against the garment. This option is recommended if the customer requests sublimation of cotton.
Can it be sublimated into vinyl fabric?
So the answer is absolutely yes! You can sublimate with vinyl! For ideal results, it is recommended to sublimate on a white or light colored substrate. At the same time, HTV is perfect for all fabrics and other materials.
