Place of Origin:
china
Brand Name:
aiifar
Certification:
CE
Model Number:
WP-60-01
Contact Us

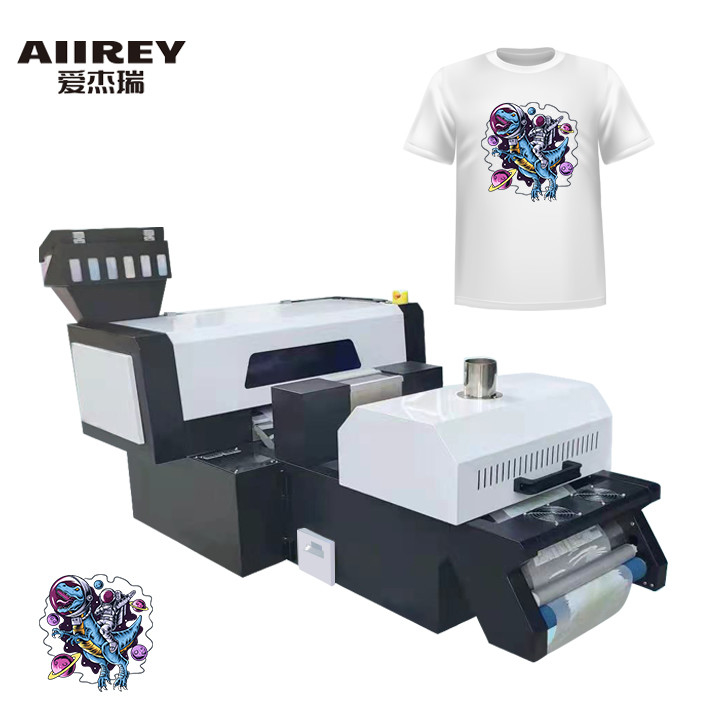

Two XP600 Heads 30cm DTF Transfer Printer With Waterbase Ink
30cm 2 Heads Dtf Transfer Printer Xp600 For Transfer Printing
Product Description
|
Printer with Duster |
|
|
Type |
WP-30-01 |
|
Nozzle model |
2 original Epson XP600 |
|
Printing Speed |
High-speed mode 4.5m²/hour |
|
Color Mode |
CMYK, LC, LM+W |
|
Printing Format |
300mm |
|
Media Transfer |
Paper tension |
|
Heating Device |
Front, middle and back three-stage heating |
|
Ink Road System |
Automatic ink supply, |
|
Power Supply |
110V/220V 50-60Hz |
|
Power |
≈2kw |
|
Weight |
130KG machine + box 50KG |
|
Packaging |
170*120*85cm |
|
Working Environment |
Temperature 20-28℃ Humidity 50-70ph |
|
Cover Area |
160*110*70cm |
1. Constant tension paper feeding: ensure that the color of the white paper is in place and accurate, and no paper is fed.
2. Integrated lift maintenance station, with timing flashing function, better maintenance of the nozzle.
3. Industrial-grade processing long beam, Japanese THK guide rail, one-piece heavy-duty tripod.
4. Quantitative powder spraying (the weight sensor controls the amount of powder output, and there are powder blocking devices on both sides to reduce manual powder return, beating, and powder output, and the speed is adjustable)
5. Double-layer fan cooling device, automatic paper feeding device, you can choose to cut and punch holes or automatically feed paper.
6. Mesh belt conveying, adjustable speed, front and rear suction, simple and fast operation, intelligent baking up and down, PDI control, constant temperature, to ensure that the printing film is not deformed.
7. Intelligent PLC touch screen control system, easy to operate, with alarm monitoring, extremely simple operation.
No need to set up multiple times
DTF systems work best because the CMYK colors come before the white ink layer. Unlike screen printing or direct-to-garment systems, your DTF printer does not require a separate base attribute, depending on the color shirt you want to print.
Also, when working with polyester fabrics, you don't need to use a separate set of inks (poly inks). You simply load your design into the smart RIP software and it will calibrate the ink you need.
Take care of the dry air
Great care should be taken with the dry air in the printed area. This happens because the printing process affects the quality of the air during operation. However, it is necessary to create a working environment where the humidity is constant and sustained. In addition, a proper HVAC system should be used to take drastic measures to ensure temperature consistency within the area.
Not only is it important for DTF printers, but it is also most important for the health and safety of our employees.
