Place of Origin:
china
Brand Name:
aiifar
Certification:
CE
Model Number:
WP-60-01
Contact Us

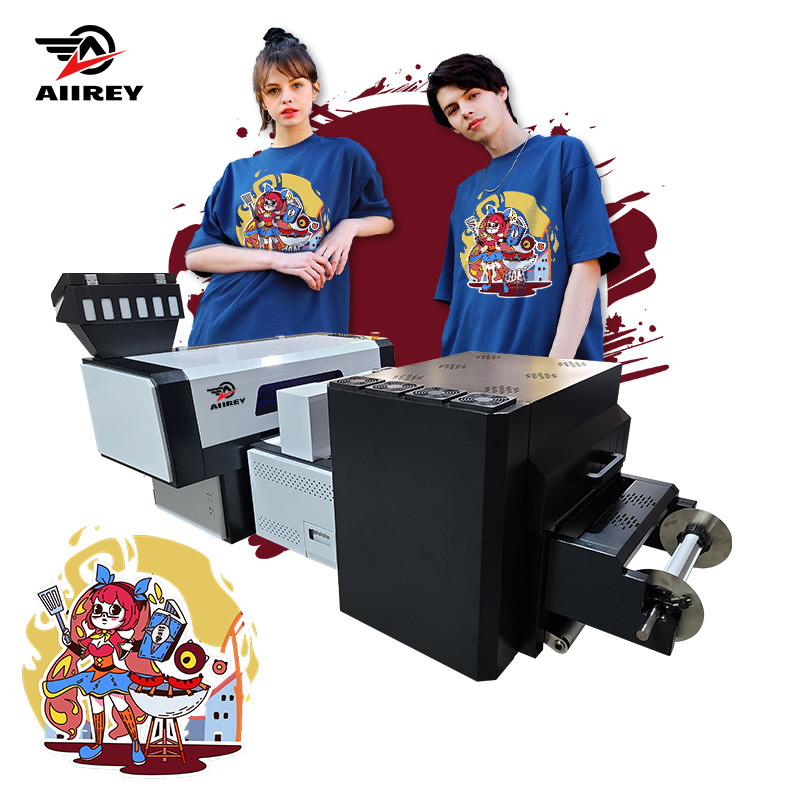

DTF Heat Transfer Printing Machine
Double Head Dtf Transfer Printer Xp600 For Small Business
Product Description

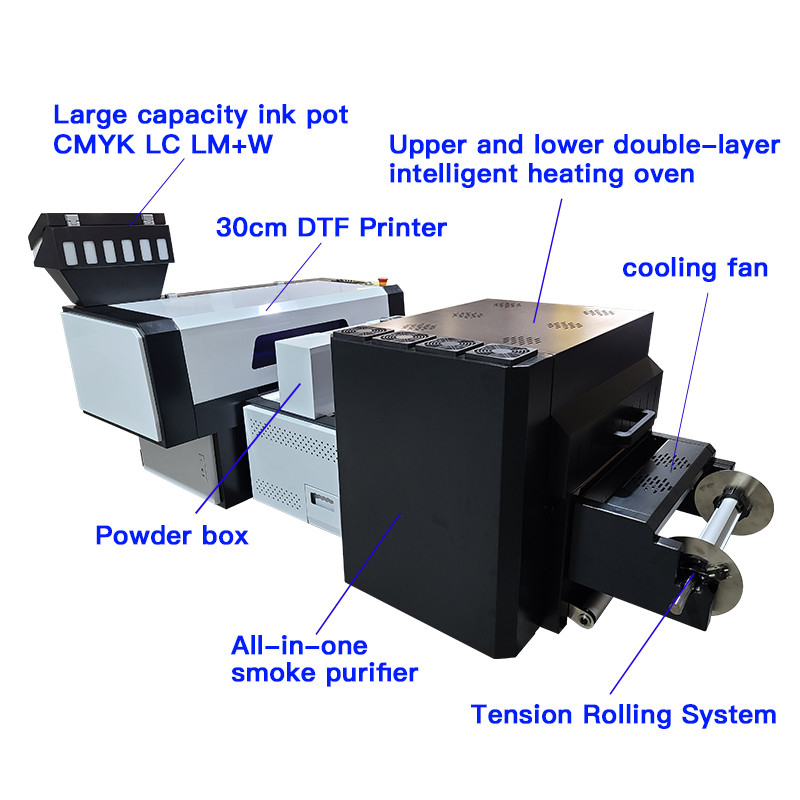

Features
1. Constant tension paper feeding: to ensure that the white color is in place and accurate, and the paper does not run off the track.
2. One-piece lifting maintenance station, with timing flashing function, better maintenance of nozzles.
3. Industrial-grade processing long beam, Japanese THK guide rail, integrated heavy-duty tripod.
4. Quantitative powder spreading (the amount of powder controlled by the weight sensor, with powder blocking devices on both sides, reducing manual powder return, flapping powder removal, adjustable speed)
5. Double-layer fan cooling device, automatic paper delivery device, can choose to punch while cutting or automatic paper delivery.
6. Mesh belt conveying, adjustable speed, front and rear suction, simple and quick operation, up and down intelligent baking, PDI control, constant temperature, to ensure that the printing film does not change shape.
7. Intelligent PLC touch screen control system, easy to operate, with alarm monitoring, extremely simplified operation.
|
Printer with Duster |
|
|
Type |
WP-30-01 |
|
Nozzle model |
2 original Epson XP600 |
|
Printing Speed |
High-speed mode 4.5m²/hour |
|
Color Mode |
CMYK, LC, LM+W |
|
Printing Format |
300mm |
|
Media Transfer |
Paper tension |
|
Heating Device |
Front, middle and back three-stage heating |
|
Ink Road System |
Automatic ink supply, |
|
Power Supply |
110V/220V 50-60Hz |
|
Power |
≈2kw |
|
Weight |
130KG machine + box 50KG |
|
Packaging |
170*120*85cm |
|
Working Environment |
Temperature 20-28℃ Humidity 50-70ph |
|
Cover Area |
160*110*70cm |
Cut out the DTF print of "Film"
The next step in the process is the start of manual labor. Now that the design is complete and printed, it only needs to be processed individually.
There is no weeding or A and B press. All you have to do is swipe your razor over the designed pillars and separate them into individual transfer sheets. A simple PG. As mentioned above, these sheets are suitable for storage for up to a year or more.
