Place of Origin:
china
Brand Name:
aiifar
Certification:
CE
Model Number:
WP-60-01
Contact Us

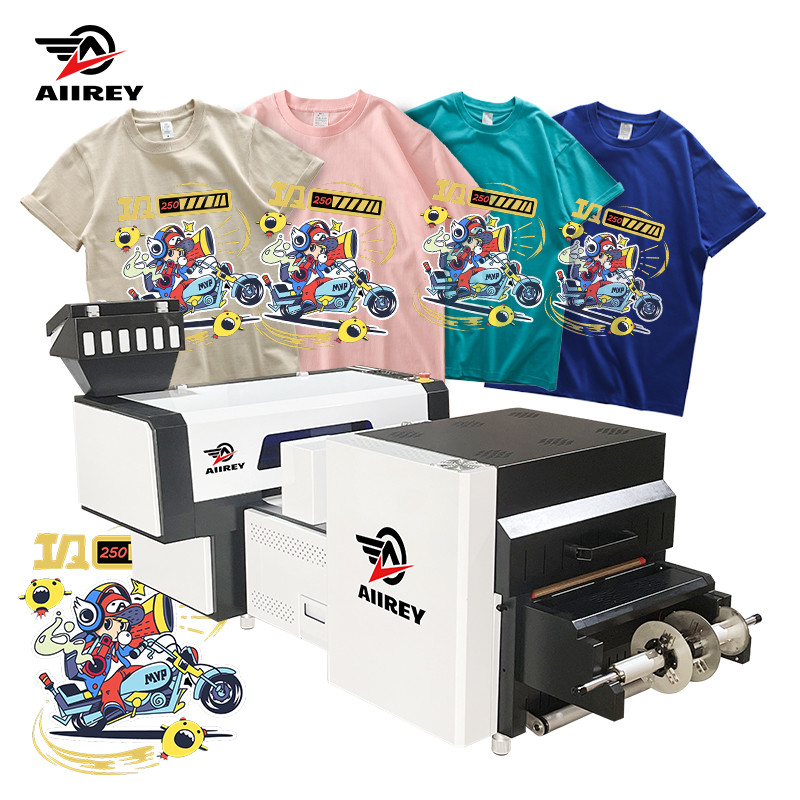

XP600 Heat Transfer Printing Machine
30cm Two Head Heat Transfer Printer Xp600 For Dtf Printing
Product Description
Printer with Duster |
|
Type |
WP-30-01 |
Nozzle model |
2 original Epson XP600 |
Printing Speed |
High-speed mode 4.5m²/hour |
Color Mode |
CMYK, LC, LM+W |
Printing Format |
300mm |
Media Transfer |
Paper tension |
Heating Device |
Front, middle and back three-stage heating |
Ink Road System |
Automatic ink supply, |
Power Supply |
110V/220V 50-60Hz |
Power |
≈2kw |
Weight |
130KG machine + box 50KG |
Packaging |
170*120*85cm |
Working Environment |
Temperature 20-28℃ Humidity 50-70ph |
Cover Area |
160*110*70cm |

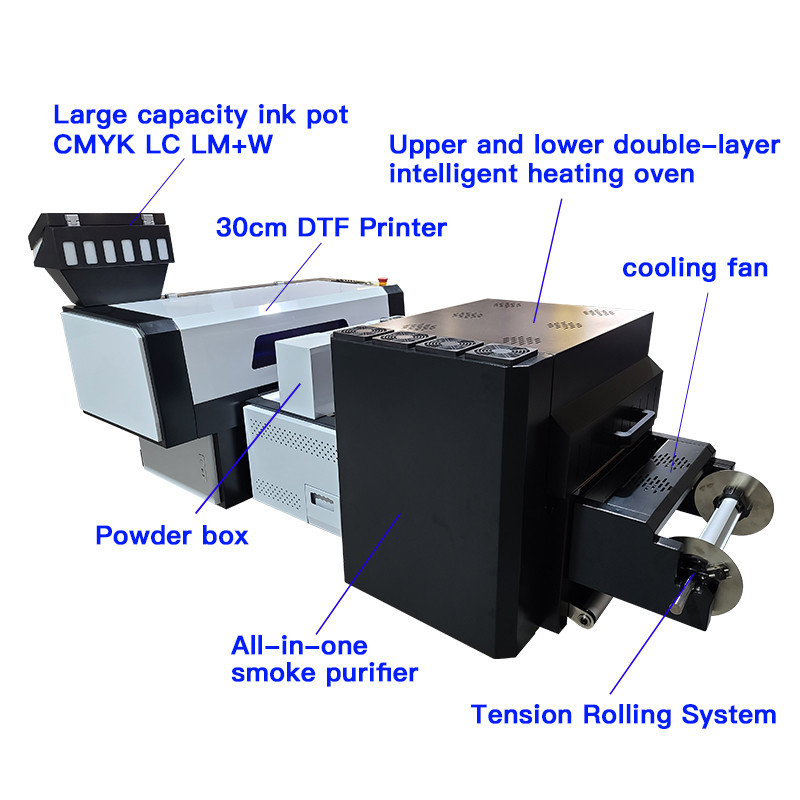

Features
1. Constant tension paper feeding: to ensure that the white color is in place and accurate, and the paper does not run off the track.
2. One-piece lifting maintenance station, with timing flashing function, better maintenance of nozzles.
3. Industrial-grade processing long beam, Japanese THK guide rail, integrated heavy-duty tripod.
4. Quantitative powder spreading (the amount of powder controlled by the weight sensor, with powder blocking devices on both sides, reducing manual powder return, flapping powder removal, adjustable speed)
5. Double-layer fan cooling device, automatic paper delivery device, can choose to punch while cutting or automatic paper delivery.
6. Mesh belt conveying, adjustable speed, front and rear suction, simple and quick operation, up and down intelligent baking, PDI control, constant temperature, to ensure that the printing film does not change shape.
7. Intelligent PLC touch screen control system, easy to operate, with alarm monitoring, extremely simplified operation.
Is Dye Sublimation Printing Good?
Dye sublimation printing excels in fine lines and details and is arguably one of the best methods for all-around printing. The low cost of setup makes it ideal for low-volume printing, and the prints are nearly permanent and almost unmatched.
What kind of transfer does this produce?

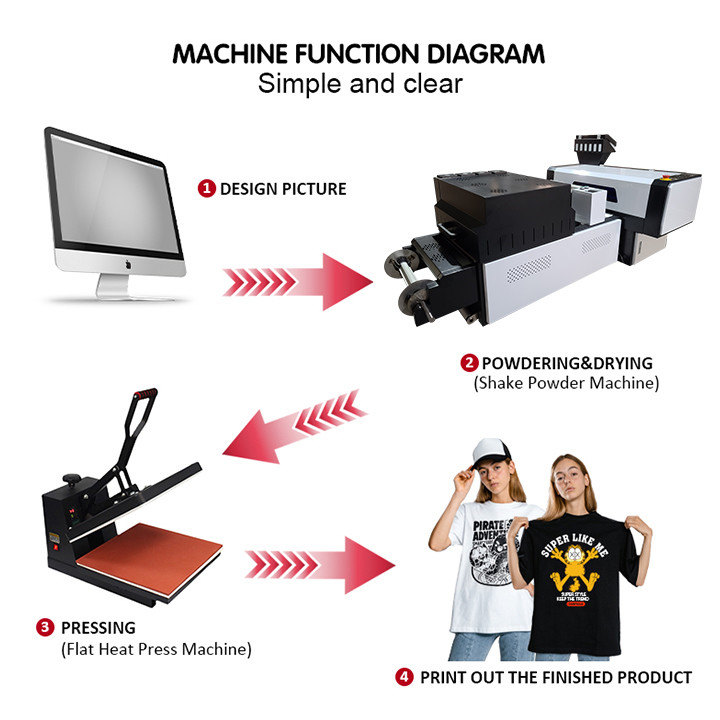

The transfers created by this system are full-color digital transfers that do not require cutting or weeding and can be applied to virtually any material.
What can these transfers apply to? Is it just a T-shirt?
These transfers can be applied to almost anything that can only withstand the heat of 220F. This very low coating temperature is suitable not only for common transfer boards such as cotton and polyester, but also for materials such as nylon, leather, neoprene and non-woven polypropylene, which are susceptible to high temperature damage. There are thousands of clothing styles and materials, and new ones are constantly being created.
Do you need a heat press or can you use an iron?
This process requires a high quality heat press to ensure accurate time, temperature and digital pressure settings. Some heat presses rely on a manual pressure setting knob. This can result in non-uniform pressure and incorrect pressure on the transfer press, resulting in poor adhesion to the material and poor detergency.
We always recommend a very special heat press to ensure the best results!
Do I have to pay extra for training?
No! For systems and software packages, we offer a great self-paced training course that is included with every purchase of your system.
