Place of Origin:
china
Brand Name:
aiifar
Certification:
CE
Model Number:
WP-30-01
Contact Us

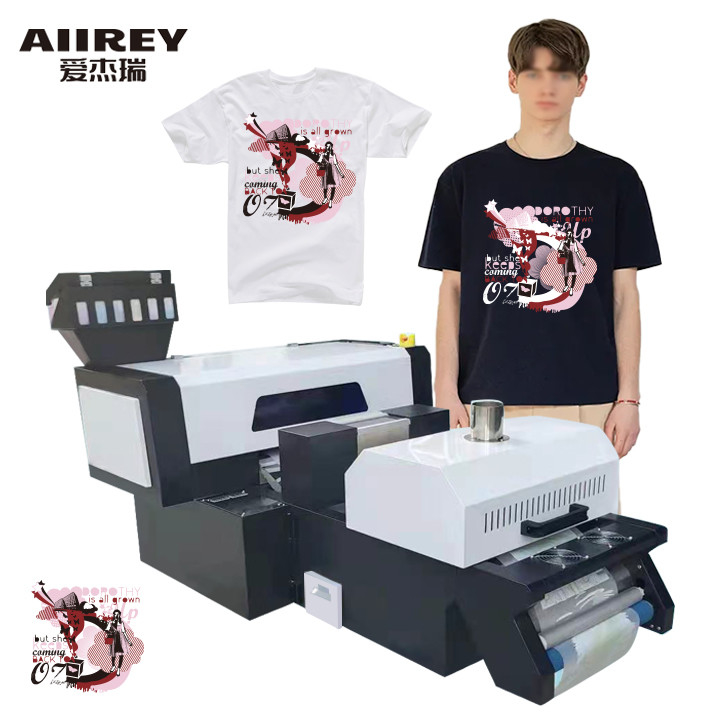

Metal 300mm Double Head A3 DTF Printer Paper Tension Transfer
300mm Double Head A3 Dtf Printer XP600 For Heat Transfer Printing
Product Description
|
Printer with Duster |
|
|
Type |
WP-30-01 |
|
Nozzle model |
2 original Epson XP600 |
|
Printing Speed |
High-speed mode 4.5m²/hour |
|
Color Mode |
CMYK, LC, LM+W |
|
Printing Format |
300mm |
|
Media Transfer |
Paper tension |
|
Heating Device |
Front, middle and back three-stage heating |
|
Ink Road System |
Automatic ink supply, |
|
Power Supply |
110V/220V 50-60Hz |
|
Power |
≈2kw |
|
Weight |
130KG machine + box 50KG |
|
Packaging |
170*120*85cm |
|
Working Environment |
Temperature 20-28℃ Humidity 50-70ph |
|
Cover Area |
160*110*70cm |
1. Constant tension paper feeding: to ensure that the white color is in place and accurate, and the paper does not run off the track.
2. One-piece lifting maintenance station, with timing flashing function, better maintenance of nozzles.
3. Industrial-grade processing long beam, Japanese THK guide rail, integrated heavy-duty tripod.
4. Quantitative powder spreading (the amount of powder controlled by the weight sensor, with powder blocking devices on both sides, reducing manual powder return, flapping powder removal, adjustable speed)
5. Double-layer fan cooling device, automatic paper delivery device, can choose to punch while cutting or automatic paper delivery.
6. Mesh belt conveying, adjustable speed, front and rear suction, simple and quick operation, up and down intelligent baking, PDI control, constant temperature, to ensure that the printing film does not change shape.
7. Intelligent PLC touch screen control system, easy to operate, with alarm monitoring, extremely simplified operation.
Is sublimation the same as infusible ink?
This is a new CMYK decorating method that seamlessly blends logos with our custom fabrics. Combined with these special fabrics, it blends with the garment to create a light and comfortable feeling. The result is a crisp, permanent image that cannot be touched.
What is the sublimation process?
Sublimation is the process of turning a solid (ink in this case) into a gas using thermal pressure at a temperature of 400 degrees. The sublimation process makes the dye part of the fabric fibers. Sublimation can be used on polyester fabrics or materials with polymer coatings
