Place of Origin:
china
Brand Name:
aiifar
Certification:
CE
Model Number:
WP-30-01
Contact Us

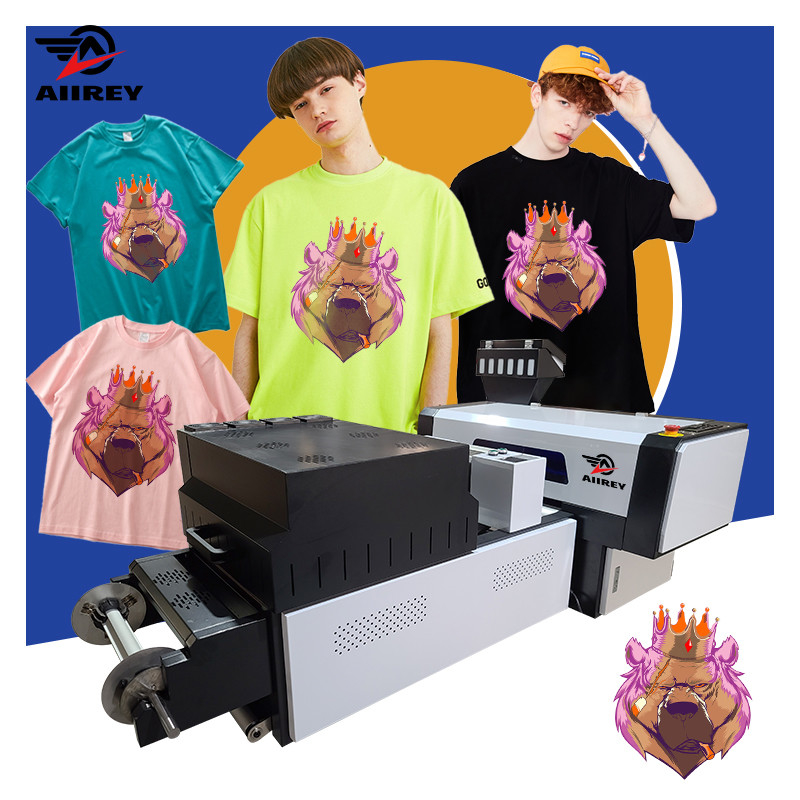

2 Head XP600 30cm A3 DTF Transfer Film Printer Three Stage Heating
2 Head Xp600 30cm A3 DTF Film Printer With Powder Shaking
|
Printer with Duster |
|
|
Type |
WP-30-01 |
|
Nozzle model |
2 original Epson XP600 |
|
Printing Speed |
High-speed mode 4.5m²/hour |
|
Color Mode |
CMYK, LC, LM+W |
|
Printing Format |
300mm |
|
Media Transfer |
Paper tension |
|
Heating Device |
Front, middle and back three-stage heating |
|
Ink Road System |
Automatic ink supply, |
|
Power Supply |
110V/220V 50-60Hz |
|
Power |
≈2kw |
|
Weight |
130KG machine + box 50KG |
|
Packaging |
170*120*85cm |
|
Working Environment |
Temperature 20-28℃ Humidity 50-70ph |
|
Cover Area |
160*110*70cm |
product description
The dtf 30cm printer prints film transfers using special water-based ink.
When the ink dries, apply powder adhesive to the backside. Thermosetting resin
Store or use immediately. One of the advantages of DTF printers is that they do not require preprocessing. Powder glue does the job for you. After heat pressing, it can be transferred to all kinds of fabrics such as cotton, polyester, spandex and silk. There are also light and dark colors.
1. Constant tension paper feeding: ensure that the color of the white paper is in place and accurate, and the paper does not feed.
2. Integrated lift maintenance station, with timing flashing function, better maintenance of the nozzle.
3. Industrial-grade processing long beam, Japanese THK guide rail, one-piece heavy-duty tripod.
4. Quantitative powder spraying (the weight sensor controls the powder output, and there are powder blocking devices on both sides to reduce manual powder returning, beating, and powder discharging, and the speed is adjustable)
5. Double-layer fan cooling device, automatic paper feeding device, you can choose to cut and punch holes or automatically feed paper.
6. Mesh belt conveying, adjustable speed, front and rear suction, simple and fast operation, intelligent baking up and down, PDI control, constant temperature, to ensure that the printing film is not deformed.
7. Intelligent PLC touch screen control system, easy to operate, with alarm monitoring, extremely simple operation.
