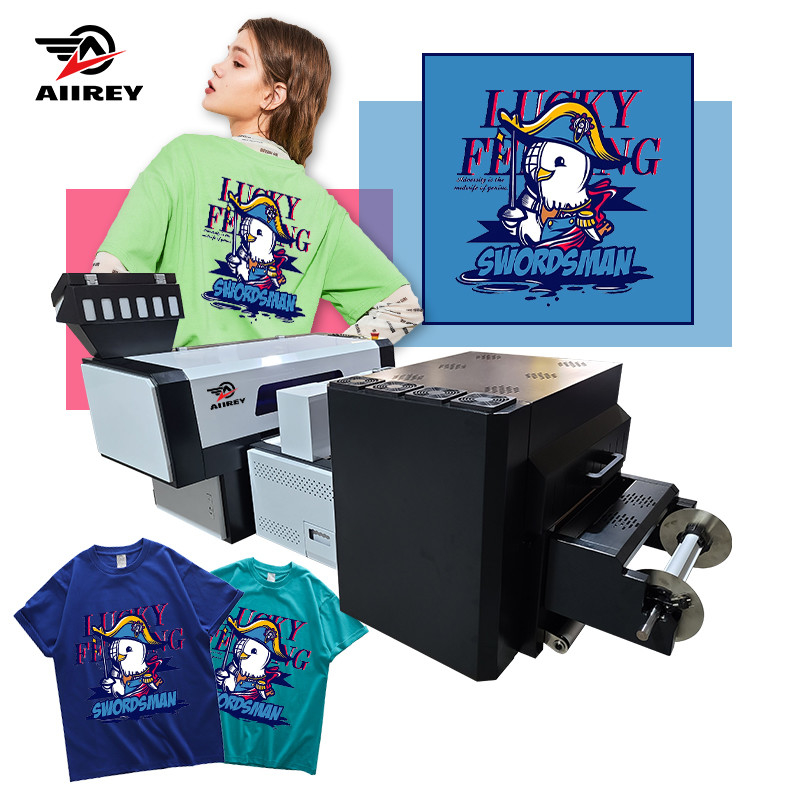

XP600 Print Head A3 Direct Transfer Film Printer With Powder Shaking
Double Xp600 300mm A3 DTF Film Printer With Powder Shaking
Product Description
The heat transfer machine uses the Epson I3200-A1 nozzle and is cost-effective, with 6 passes at 10 m2 / h and 8 passes at 8 m2 / h.
The cost of high quality heat transfer is low and can be completed with high efficiency at one time.
1) The simple linear type structure makes installation and maintenance easy.
2) High quality parts are used for pneumatic parts, electrical parts and operating parts.
3) Performed with a high degree of automation and intelligence, no pollution.
4) 3D printing effect, real, real, delicate.
|
Printer with Duster |
|
|
Type |
WP-30-01 |
|
Nozzle model |
2 original Epson XP600 |
|
Printing Speed |
High-speed mode 4.5m²/hour |
|
Color Mode |
CMYK, LC, LM+W |
|
Printing Format |
300mm |
|
Media Transfer |
Paper tension |
|
Heating Device |
Front, middle and back three-stage heating |
|
Ink Road System |
Automatic ink supply, |
|
Power Supply |
110V/220V 50-60Hz |
|
Power |
≈2kw |
|
Weight |
130KG machine + box 50KG |
|
Packaging |
170*120*85cm |
|
Working Environment |
Temperature 20-28℃ Humidity 50-70ph |
|
Cover Area |
160*110*70cm |
1. Constant tension paper feeding: ensure that the color of the white paper is in place and accurate, and the paper does not feed.
2. Integrated lift maintenance station, with timing flashing function, better maintenance of the nozzle.
3. Industrial-grade processing long beam, Japanese THK guide rail, one-piece heavy-duty tripod.
4. Quantitative powder spraying (the weight sensor controls the powder output, and there are powder blocking devices on both sides to reduce manual powder returning, beating, and powder discharging, and the speed is adjustable)
5. Double-layer fan cooling device, automatic paper feeding device, you can choose to cut and punch holes or automatically feed paper.
6. Mesh belt conveying, adjustable speed, front and rear suction, simple and fast operation, intelligent baking up and down, PDI control, constant temperature, to ensure that the printing film is not deformed.
7. Intelligent PLC touch screen control system, easy to operate, with alarm monitoring, extremely simple operation.
